GPC系列气辅压力控制器其核心部件全为进口产品,系统程序软件为中、英文触摸操作系统,可同时显示设定的压力时间曲线和实际注气过程的压力时间曲线。
GPC系列气辅压力控制台具有最新的压力曲线分级独立修正功能,操作者可随时参与输出压力控制,机台可自由移动。
控制系统:全PLC控制,完善的人机操作界面;
控制方式:根据设定压力,对输出压力进行真正的全闭环伺服控制;
压力控制:设定时间压力曲线、实际输出时间压力曲线动态显示;20套工艺参数存储;
主控系统:高精度PLC控制,全彩色触摸屏操作;系统加载自主知识产权的气辅注塑控制程序,随机还加载独有的系统智能恢复程序、控制系统自检向导程序。
The core components of GPC series gas-assisted pressure controllers are all imported products, and the system program software is touch operating system in Chinese and English, which can display the set pressure time curve and the actual gas injection process pressure time curve at the same time.
GPC series gas-assisted pressure control console has the latest pressure curve classification independent correction function, the operator can participate in the output pressure control at any time, the machine can move freely.
Control system: full PLC control, perfect man-machine operation interface;
Control mode: according to the set pressure, the output pressure of the real full closed-loop servo control;
Pressure control: set the time pressure curve, the actual output time pressure curve dynamic display; 20 sets of process parameter storage;
Main control system: high precision PLC control, full color touch screen operation; The system loads the gas-assisted injection molding control program with independent intellectual property rights, and randomly loads the unique system intelligent recovery program and control system self-check wizard program.
GPC系列气辅压力控制器
型号
| 控制端口数 | 控制压力 | 触摸屏 | 压力控制段数 | 功率 |
GPC-1 | 1路 | 0-350Bar | 4寸彩色 | 1-6段 | 20W |
GPC-2 | 2路 | 0-350Bar | 10寸彩色 | 1-9段 | 50W |
GPC-4 | 4路 | 0-350Bar | 10寸彩色 | 1-9段 | 50W |

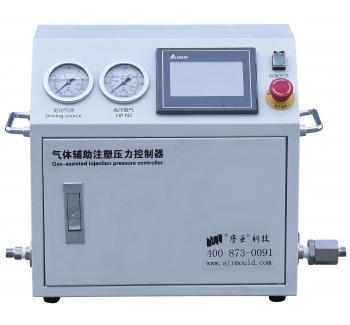

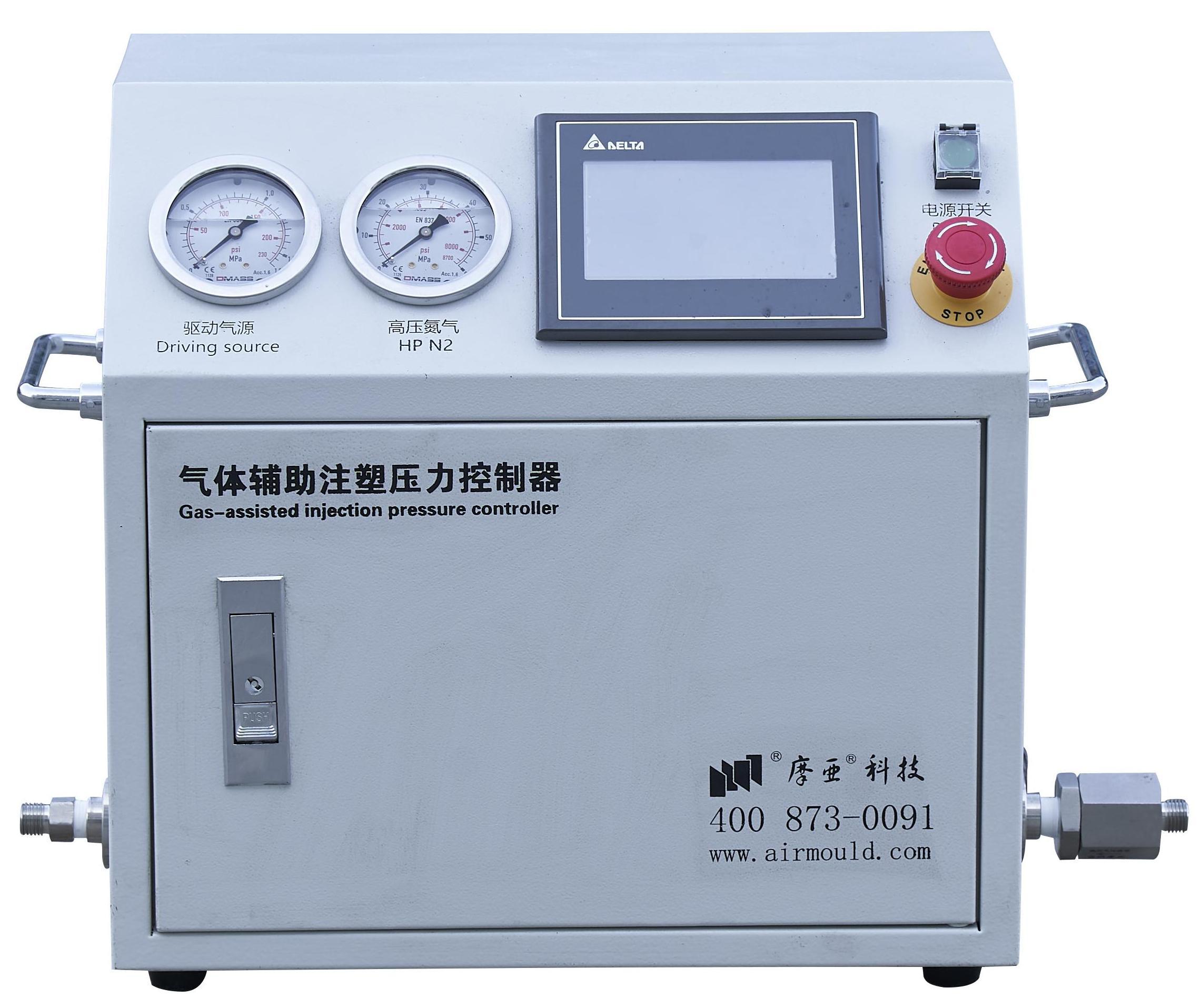

GPC-01气辅压力控制器为单路控制输出端口,单台可控制1付气辅模具的工艺生产。

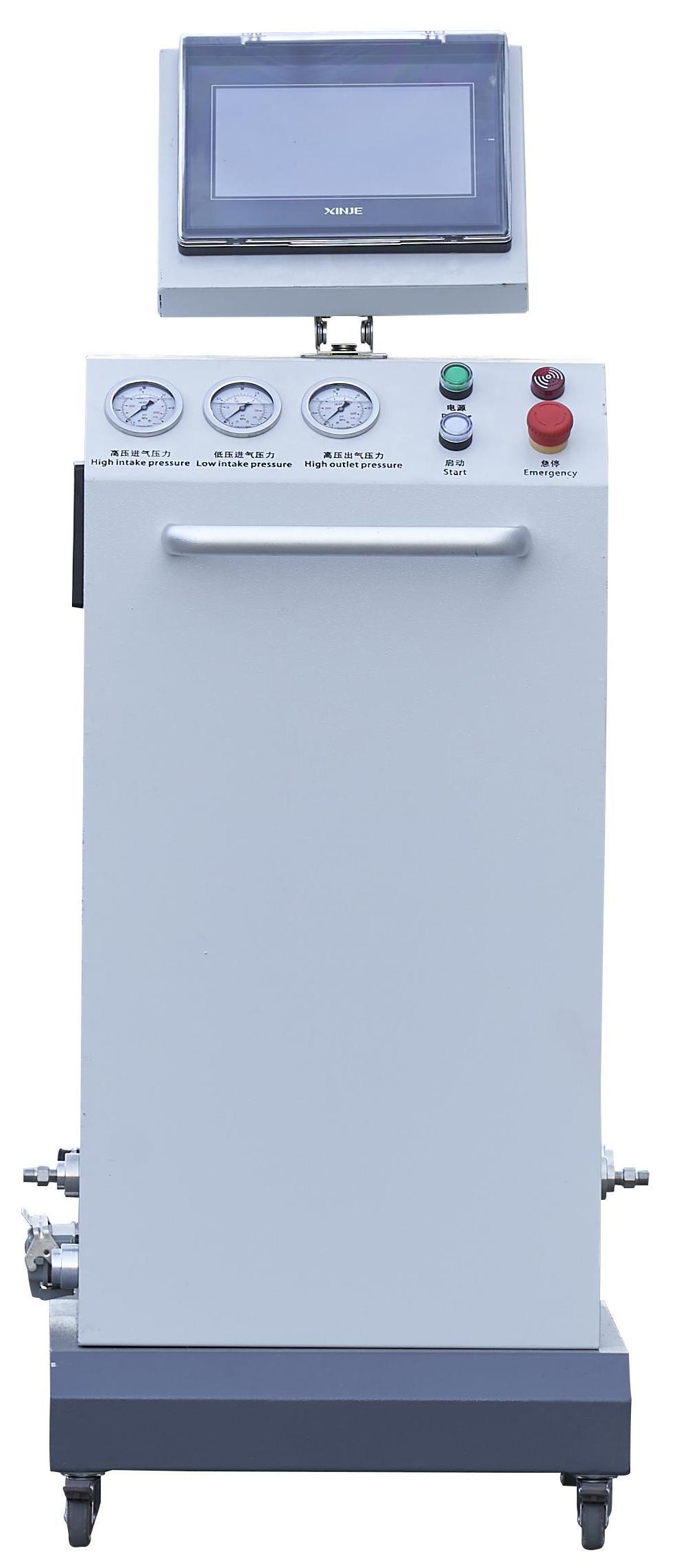

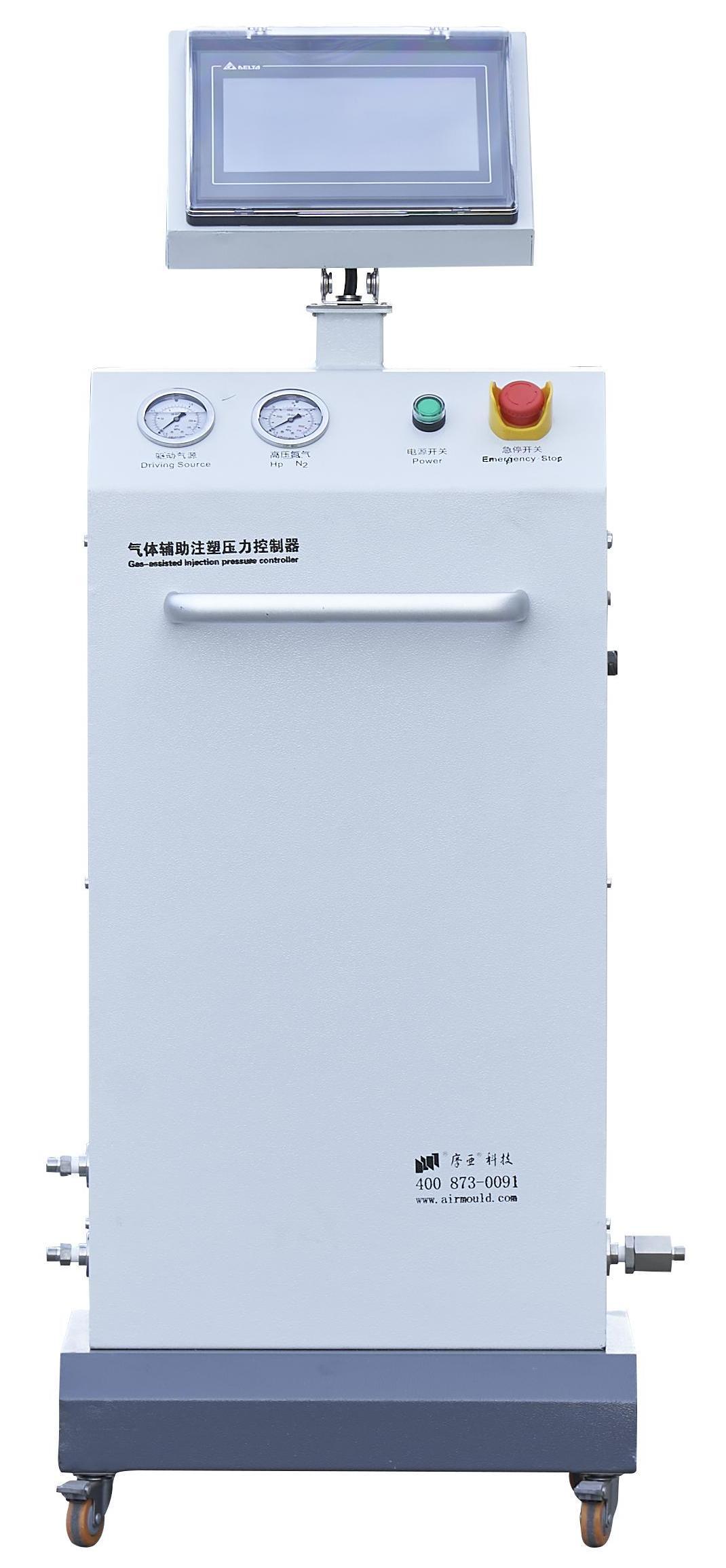

GPC-02气辅压力控制器内含2路独立控制输出端口,可用于一模两腔等特殊模具的工艺成型。

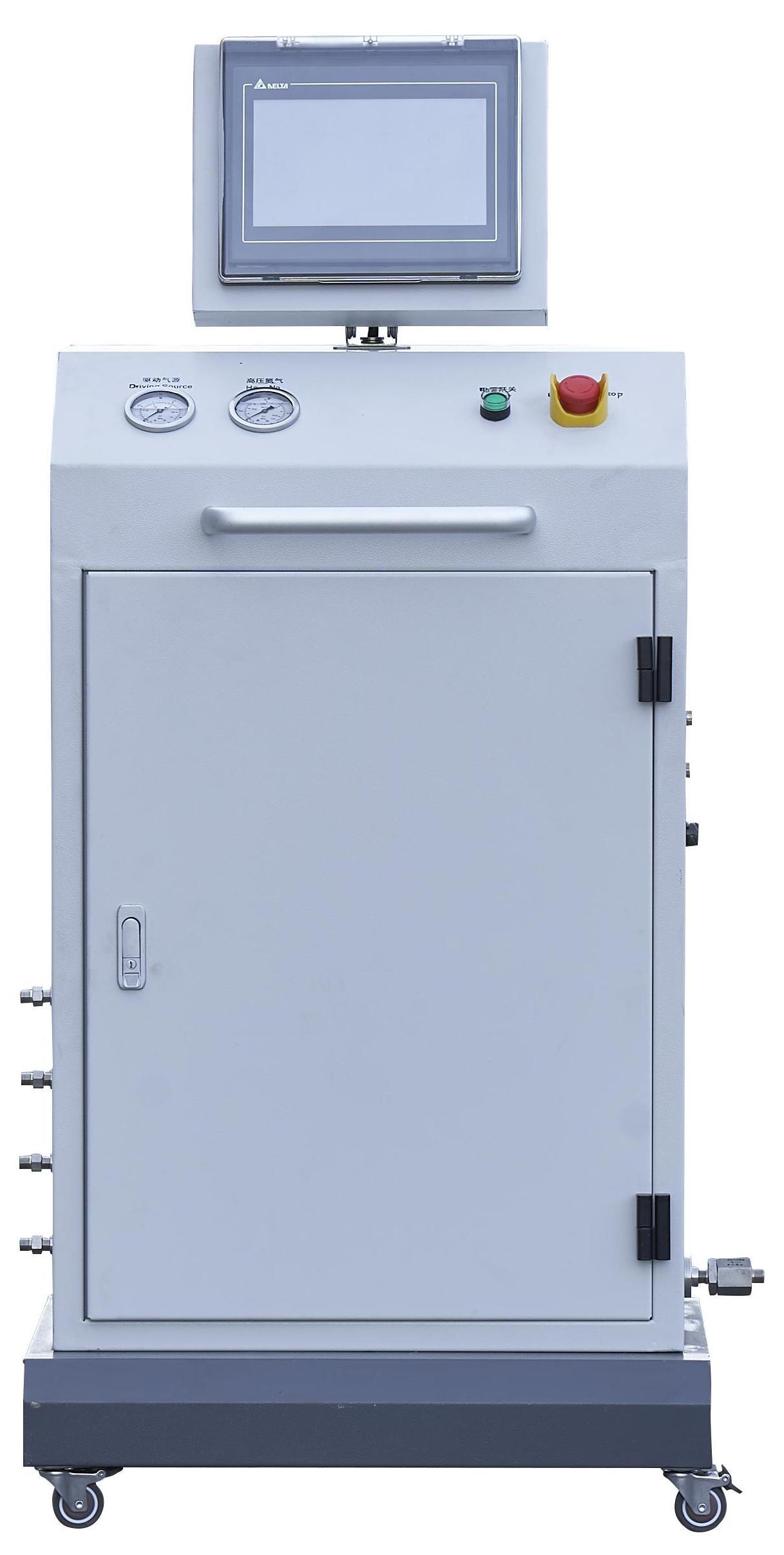

GPC-04气辅压力控制器内含4路独立控制输出端口,可用于一模四腔等特殊模具的工艺成型。
GPC-01 gas auxiliary pressure controller is a single control output port, which can control the process production of one gas auxiliary die.
GPC-02 gas-assisted pressure controller contains 2 independent control output ports, which can be used for the process molding of one mold two cavities and other special molds.
GPC-04 gas-assisted pressure controller contains 4 independent control output ports, which can be used for one mold four cavities and other special mold process molding.
GPC系列高精度气辅压力控制器
控制方式 Control mode | 全PLC控制,全闭环伺服压力控制 Full PLC control, full closed loop servo pressure control |
|
运行方式 Mode of operation | 全自动运行※手动运行 Automatic operation ※ Manual operation | |
工控机置 Industrial computer | 台湾台达原装工业PLC控制模块 Taiwan Delta original industrial PLC control module | |
操作系统 Operating system | 中、英文人机界面,自由切换 Chinese and English man-machine interface, free switching | |
工艺参数存储量 Storage capacity of process parameters | 20套工艺编程存储 20 sets of process programming storage | |
系统响应时间 System response time | ≤0.01秒 ≤0.01 seconds | |
最大升压速率 Maximum voltage boost rate | 999bar/秒 999bar/ second | |
每级设定时间 Set the time for each level | 0.1-100秒 0.1-100 seconds | |
压力控制精度 Pressure control accuracy | 1bar | |
压力控制范围 Pressure control range | 0~350bar | |
辅助功能 Auxiliary function | 可独立接驳模具油缸、气缸等外设 Can be independently connected mold cylinder, cylinder and other peripherals | |
其他 other | 具有气针清理功能 With gas needle cleaning function |
