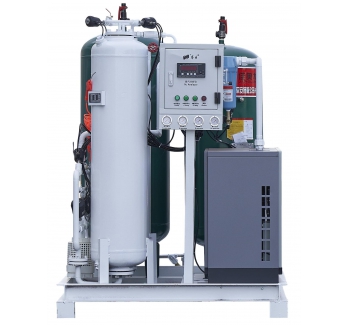

PSA制氮机PSA nitrogen making machine
工艺流程简介Brief introduction of process flow
环境空气经压缩净化，除去油、水、尘后，进入由两个装填有碳分子筛的吸附塔组成的变压吸附装置。压缩空气由下至上流经吸附塔，其间氧分子在碳分子筛表面吸附，氮气由吸附塔上端流出，进入氮气缓冲罐，经过一段时间后，吸附塔中碳分子筛被吸附的氧饱和，需进行再生。再生是通过停止吸附步骤，降低吸附塔压力来实现的。两个吸附塔交替进行吸附和再生，从而确保氮气的连续输出。
The ambient air is compressed and purified, and after removing oil, water and dust, it enters a pressure swing adsorption device composed of two adsorption towers filled with carbon molecular sieve. The compressed air flows through the adsorption tower from bottom to top, during which oxygen molecules are adsorbed on the surface of the carbon molecular sieve, and nitrogen flows out from the upper end of the adsorption tower into the nitrogen buffer tank. After a period of time, the carbon molecular sieve in the adsorption tower is saturated with adsorbed oxygen and needs to be regenerated. Regeneration is achieved by stopping the adsorption step and reducing the adsorption column pressure. The two towers alternate adsorption and regeneration to ensure a continuous output of nitrogen.
三、技术特点
1、原料空气取自自然，只需提供压缩空气和电源即可制氮气。设备能耗低，运行成本费用少。内置空气净化、干燥系统，确保压缩空气品质，提高分离效果。
2、氮气纯度调整方便，氮气纯度只受氮气排气量的影响，制氮纯度在95%－99.9%之间任意调节。
3、设备自动化程度高，产气快，无人值守。启动、关机只需按一下按钮，开机10-15分钟内即可产生氮气。
4、设备工艺流程简单，设备结构外形紧凑，占地面积小，设备装置适应性强。
5、暴风雪法装填分子筛，避免高压气流冲击导致分子筛粉化现象，确保分子筛长时间使用。
6、分析仪在线检测，高精度，免维护
Three, technical characteristics
1. Raw air is taken from nature, and nitrogen can be produced only by providing compressed air and power supply. The equipment has low energy consumption and less operating costs. Built-in air purification and drying system, to ensure the quality of compressed air, improve the separation effect.
2, the purity of nitrogen is easy to adjust, nitrogen purity is only affected by nitrogen exhaust volume, nitrogen purity can be adjusted between 95% and 99.99%.
3, high degree of automation, fast gas production, unattended. Start, shut down just press the button, boot within 10-15 minutes can produce nitrogen.
4, the equipment process is simple, the equipment structure is compact, the area is small, the equipment is strong adaptability.
5, snowstorm method loading molecular sieve, avoid high pressure air impact caused by molecular sieve powder phenomenon, to ensure the long-term use of molecular sieve.
6, analyzer online detection, high precision, maintenance free
NG系列PSA制氮机
设备序号 | 产氮量L | 氮气纯度 | 露点 | |
NG-200 | 150-200 | ≥99% | 40 | |
NG-300 | 250-300 | ≥99% | 40 | |
NG-500 | 450-500 | ≥99% | 40 | |
NG-700 | 650-700 | ≥99% | 40 | |
NG-1000 | 950-1000 | ≥99% | 40 |
